Use member functions

Avatar
Kepion Support
  • Updated

Introduction

Kepion has member functions, which are SQL functions that return a set of members. These functions can be used in a SQL database or any SQL-related rules in Kepion.



Note: Member Ffunctions before Kepion version 6.1.22209 were called Hierarchy API and needed to be manually enabled. Refer here for more information.



The functions currently are:



Function Purpose

fnANCESTORS

 Given a member, it will return all the ancestor members. A member's ancestry is its direct path of members to the All member.

fnDESCENDANTS

 Given a member, it will return all descendant members.

fnCHILDREN

 Given a member, it will return all child members.

fnLEAVES

 Given a member, it will return all leaf Members.



Tip: Member Functions are based on nested sets. Refer to the Background section for more information.





Parameters

You will need to use these parameters when using a Member Function:



Parameter Description
@Dimension A string field to enter the dimension name.
@Hierarchy A string field to enter the hierarchy or member list name.
@Label A string field to enter the given member's name.
@IncludeSelf A byte field to decide whether you want the given member to be returned in the result (1 for yes, 0 for no).





Functions

fnANCESTORS

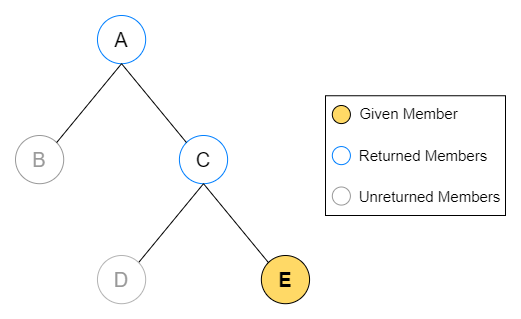

For an illustration of how fnANCESTORS works, refer to the following image:






To use fnAncestors:



1. Create a new query and use a SELECT statement with [dbo].[fnANCESTORS]:



SELECT * FROM [dbo].[fnANCESTORS] (N'Dimension', N'Hierarchy', N'GivenMember', 0);



2. Select Execute.








fnDESCENDANTS

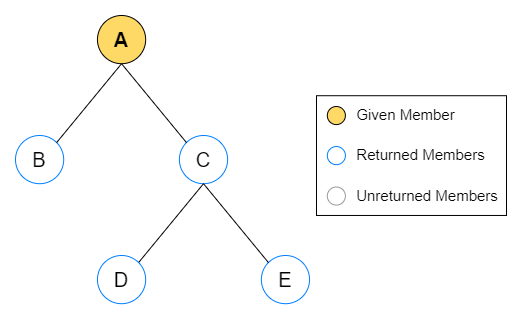

For an illustration of how fnDESCENDANTS works, refer to the following image:






To use fnDescendants:



1. Create a new query and use a SELECT statement with [dbo].[fnDESCENDANTS]:



SELECT * FROM [dbo].[fnDESCENDANTS] (N'Dimension', N'Hierarchy', N'GivenMember', 0);



2. Select Execute.








fnCHILDREN

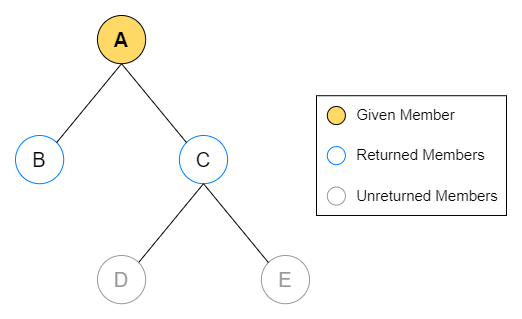

For an illustration of how fnCHILDREN works, refer to the following image:






To use fnChildren:



1. Create a new query and use a SELECT statement with [dbo].[fnCHILDREN]:



SELECT * FROM [dbo].[fnCHILDREN] (N'Dimension', N'Hierarchy', N'GivenMember', 0);



2. Select Execute.






fnLEAVES

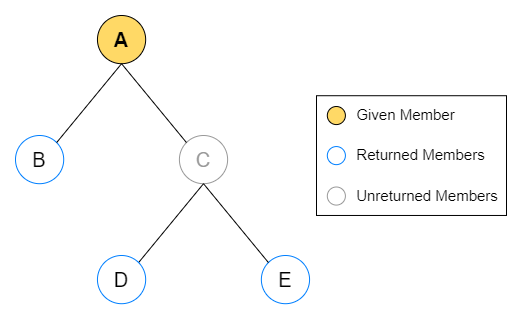

For an illustration of how fnLEAVES works, refer to the following image:






To use fnLeaves:



1. Create a new query and use a SELECT statement with [dbo].[fnLEAVES]:



SELECT * FROM [dbo].[fnLEAVES] (N'Dimension', N'Hierarchy', N'GivenMember', 0);



2. Select Execute.








Background

We'll use the following parent-child hierarchy to illustrate how nested sets work:






Nested sets assign two numbers to each node (i.e., hierarchy member) according to a 'depth-first' traversal. Depth-first traversals work from left to right, assigning a number in order upon entering and exiting each node. Thus, each node will have two numbers, stored as two attributes.

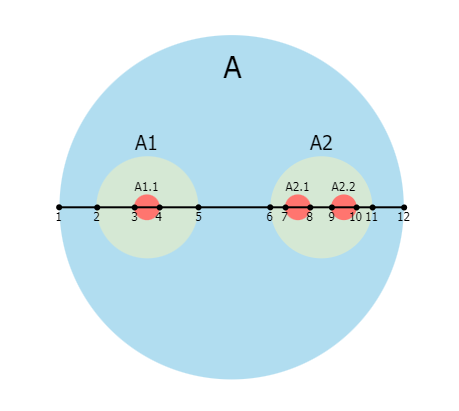

Here's our example hierarchy represented as a nested set:






Node Left Right
A 1 12
A1 2 5
A1.1 3 5
A2 6 11
A2.1 7 8
A2.2 9 10



Nested sets help make querying efficient. You can, for example, test hierarchy memberships by comparing members' assigned numbers.
