Introduction

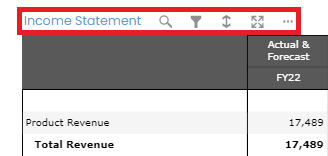

The Form Bar allows users to access Actions quickly and conveniently on Forms. This feature is available in Forms across the Modeler.
Within the Dashboard Editor, Modelers can now manage Form Titles and common Actions in the Form Bar tab.
The Form Bar is also available, by default, in the Form Editor, so Modelers can access helpful Actions:
Show/Hide Form Bar
Note: Dashboard Forms will have Form Bar enabled by default from Kepion 6.1.22207 onwards. Follow the instructions below to hide the feature.
1. Go to a Dashboard Page and select a Form.

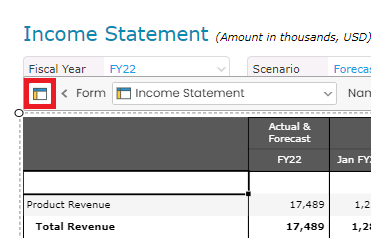

2. Click the Form Configuration button .

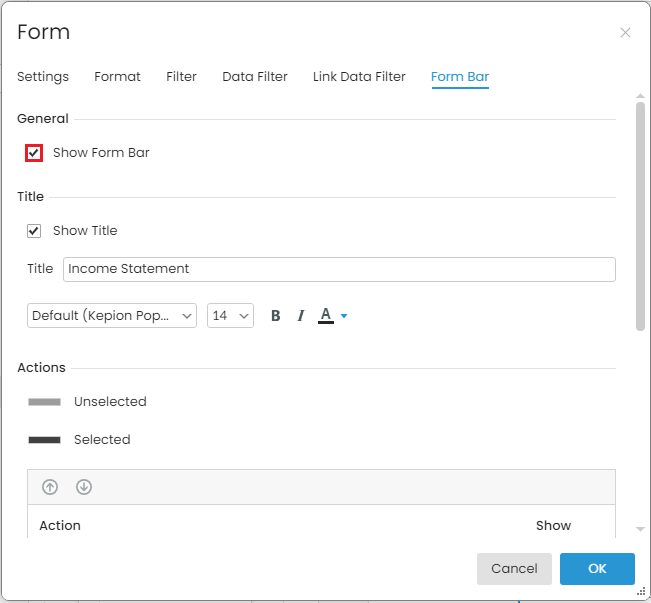

3. Go to the Form Bar tab and select the Show Form Bar checkbox to show (checked) or hide (unchecked).
You should now be able to edit the Title and Actions settings.
Title

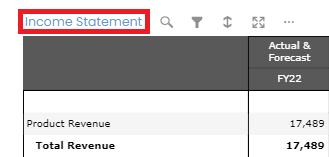

Modelers can show the Form Title/Name in the Form Bar.
Show/Hide
Note: Show Title is enabled, by default, from Kepion 6.1.22207 onwards. Follow the instructions below to hide the Form Title.

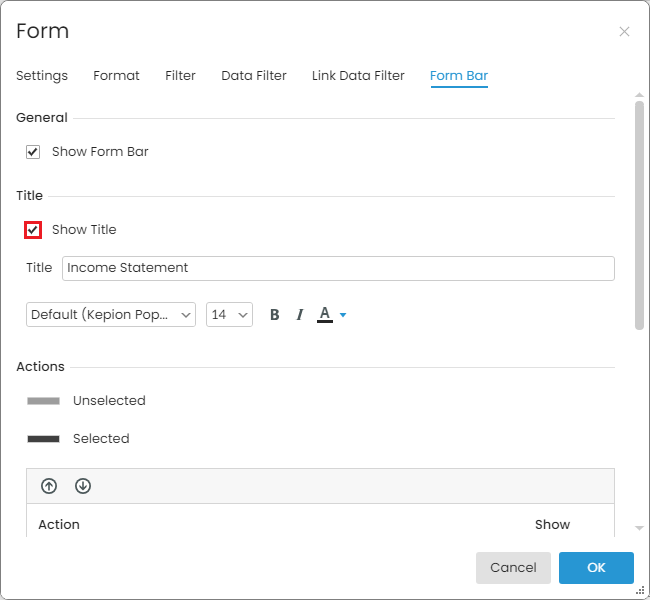

Select the Show Title checkbox to show (checked) or hide (unchecked).
Format

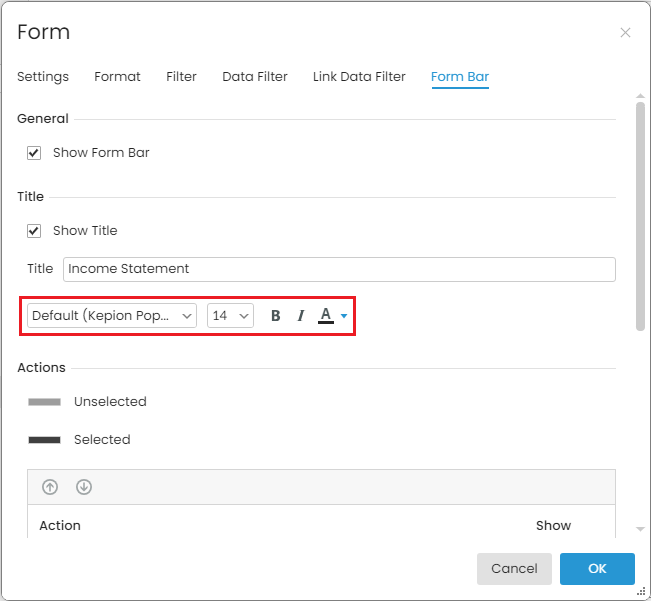

Use the various styling options to achieve the desired look for the Form's Title.
Edit
The Form Title will, by default, come from the Name field.

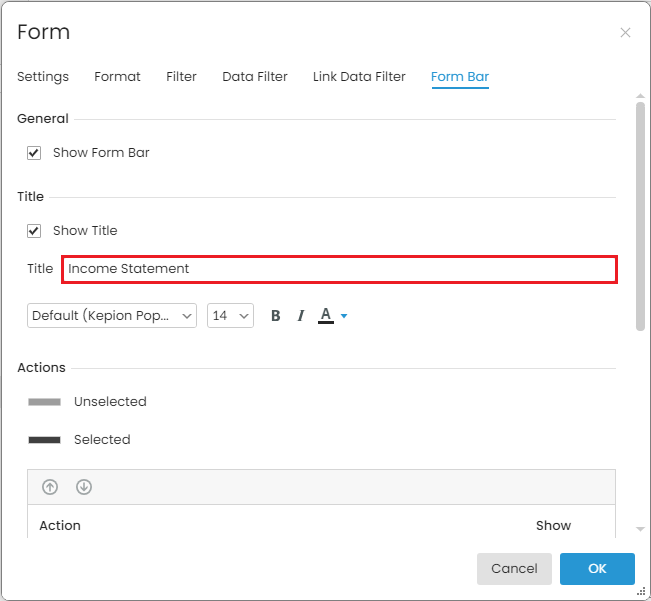

You can change the Form Title either by changing the string in the Name field or the Title field in the Form Configuration menu.
Actions

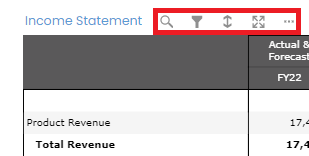

Actions appear next to the Title:

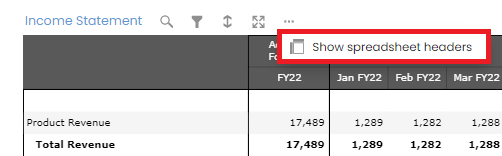

Main Actions appear individually in the Form Bar, while More Actions appear when you click the ellipses (...).
Show/Hide
Modelers can show/hide Form Actions to keep the Form Bar as compact and efficient as possible.

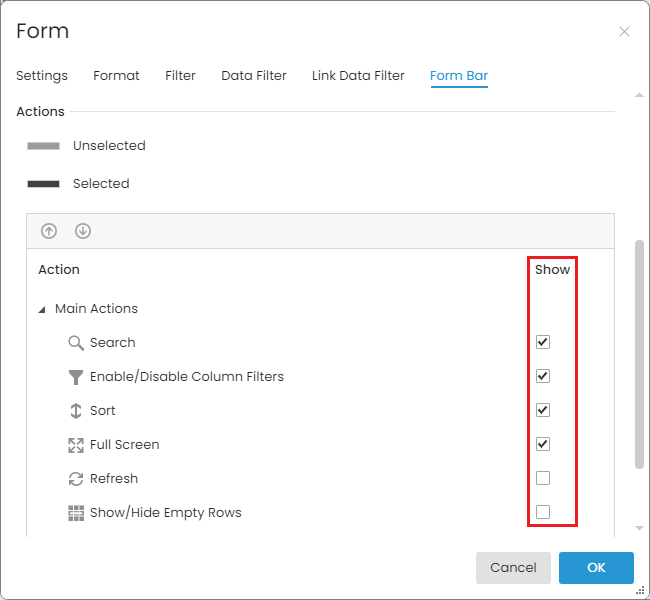

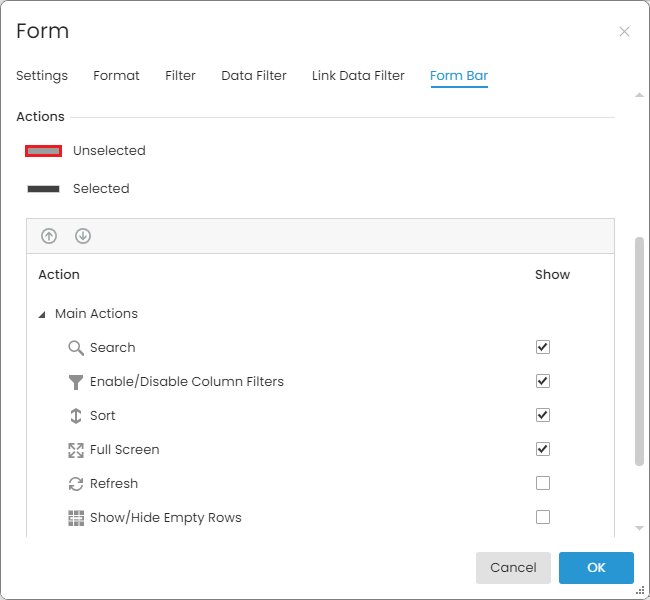

Under the Show column, select the checkbox of the Action you want to show (checked) or hide (unchecked) and click OK.
Format
Modelers can change the color of selected and unselected Actions.

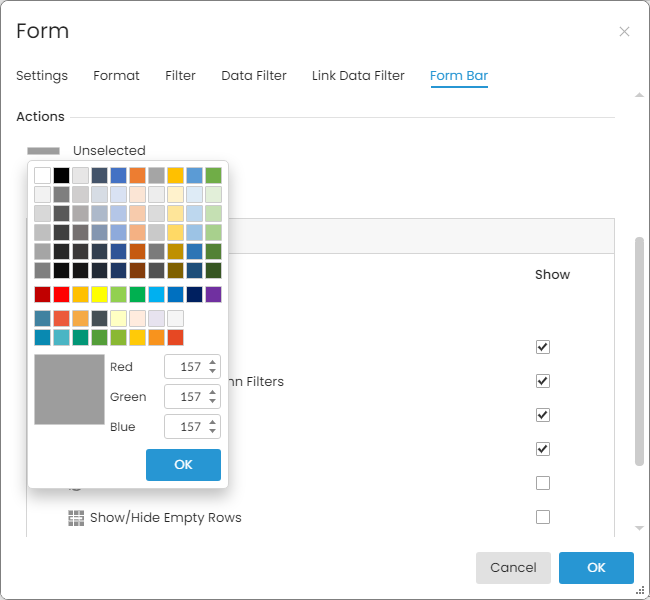

1. Click the color preview for Unselected or Selected.
2. Select a color or enter RGB values.
3. Select OK when finished.
Reorder
Modelers can also change the order Actions appear in the Form Bar.

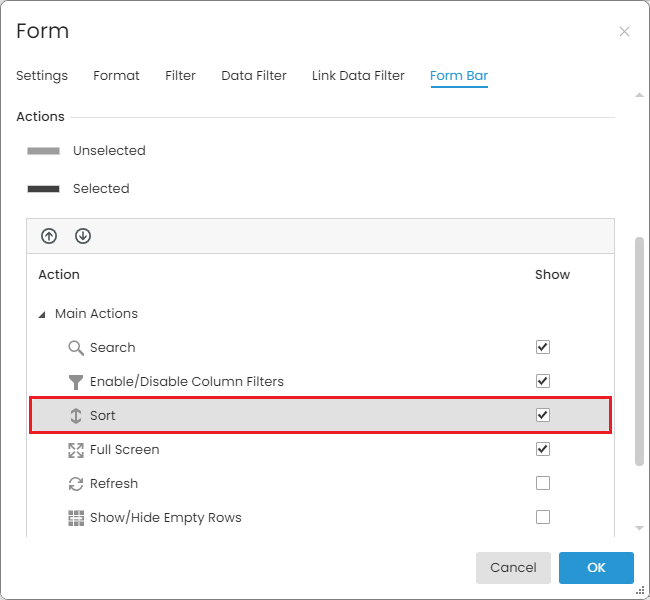

1. Select an Action.

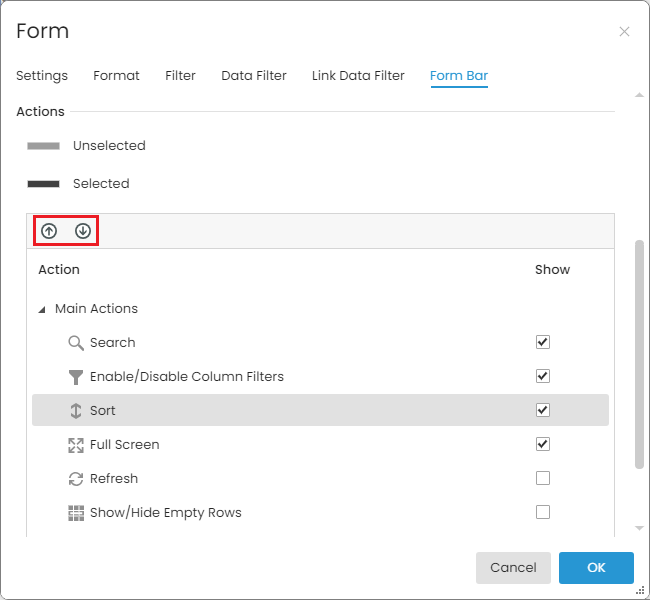

2. Select to move the Action left on the Form Bar OR select
to move the Action right.
If you move Sortup one, this is the result:
If you move the Action down one, this is the result:
3. Select OK when finished.
